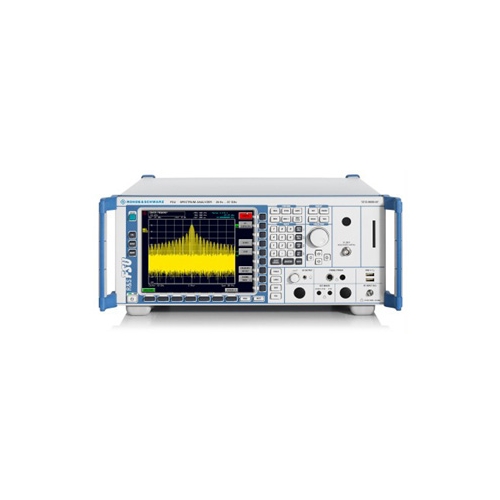

R&S FSU26 Spectrum Analyzer
Manufacturer: Rohdeschwarz
Model: R&S FSU26
Name: Spectrum Analyzer
Frequency: 9KHz to 26.5GHz
26.5G Spectrum Analyzer|Rohde & Schwarz|20Hz to 26.5GHz
Manufacturer‘s name: Rohde&Schwarz R&S, Germany
Detailed description:
The R&SFSU series spectrum analyzer is the leader in spectrum analyzer indicators such as dynamic range, phase noise, level accuracy, and resolution bandwidth. All these indicators are also an important guarantee for users to design, measure and produce next-generation wireless communication components. 0 frequency range: starting from 20Hz, to 3.6 GHz, 8 GHz, 26.5 GHz, 46 GHz and 50 GHz respectively. Display average local noise: -158dBm (normalized to 1 Hz) Phase noise: -123 dBc (1 Hz) Third-order intermodulation intercept point (TOI) at 10 kHz offset: typical value +25dBm resolution bandwidth: 1 Hz to 50 MHz. Very high measurement speed. Supports fast adjacent channel power (ACP) measurement in time domain mode per second. 70 measurements (including the time to transmit data via the GPIB bus) unmatched measurement function Standard configuration can provide TOI, MC ACP(R), OBW, CCDF, APD and other measurement function options can support:-GSM/ EDGE- The excellent RF performance of Bluetooth-WCDMA / HSDPA / TD-SCDMA-CDMA2000 / 1xEV-DV /1xEV-DO has always been the main feature of Rohde & Schwarz spectrum analyzers.
R&SFSU continues to maintain this tradition and provides the following top RF performance:
FSU3 20 Hz to 3.6 GHz
FSU8 20 Hz to 8GHz
FSU26 20 Hz to 26.5 GHz
FSU46 20 Hz to46 GHz
FSU50 20 Hz to50 GHz
RF performance:
The total level uncertainty to 3.6GHz is 0.3dB
The linearity error at -70dB is less than 0.1dB
Level accuracy:
Display average local noise: -158 dBm (normalized to 1 Hz), no preamplifier
Single sideband phase noise typ. -123 dBc/Hz @ 10 kHz offset, center frequency 640 MHz
Single sideband phase noise typ. -160 dBc/Hz @ 10 MHz offset, center frequency 640 MHz
Third-order intermodulation intercept point (TOI): typical value +25 dBm
1dB compression point: +13dBm
The dynamic range of WCDMA adjacent channel leakage power (ACLR) is 77.5 dB, and the noise correction can reach 84 dB
IQ down converter:
The precision of IF A/D conversion is 14bit, and the sampling rate is 32MHz (IF frequency is 20.4MHz)
IQ memory capacity is 2x512 k sampling points
Speed:
Frequency domain scan time is at least 2.5ms
Time domain scan time is at least 1 μs
70 measurements per second (including the time to transmit trajectory data via the GPIB bus)
The remote control mode can support list scan (listmode) to further reduce the measurement time
